贴片晶体谐振器    当前位置:首页 >公司产品 >晶体谐振器(Crystal) >贴片晶体谐振器
产品型号 规格书 产品图片 封装尺寸
长 x 宽 x 高
(mm)
负载电容 频率范围 驱动电平 稳定度 温度范围

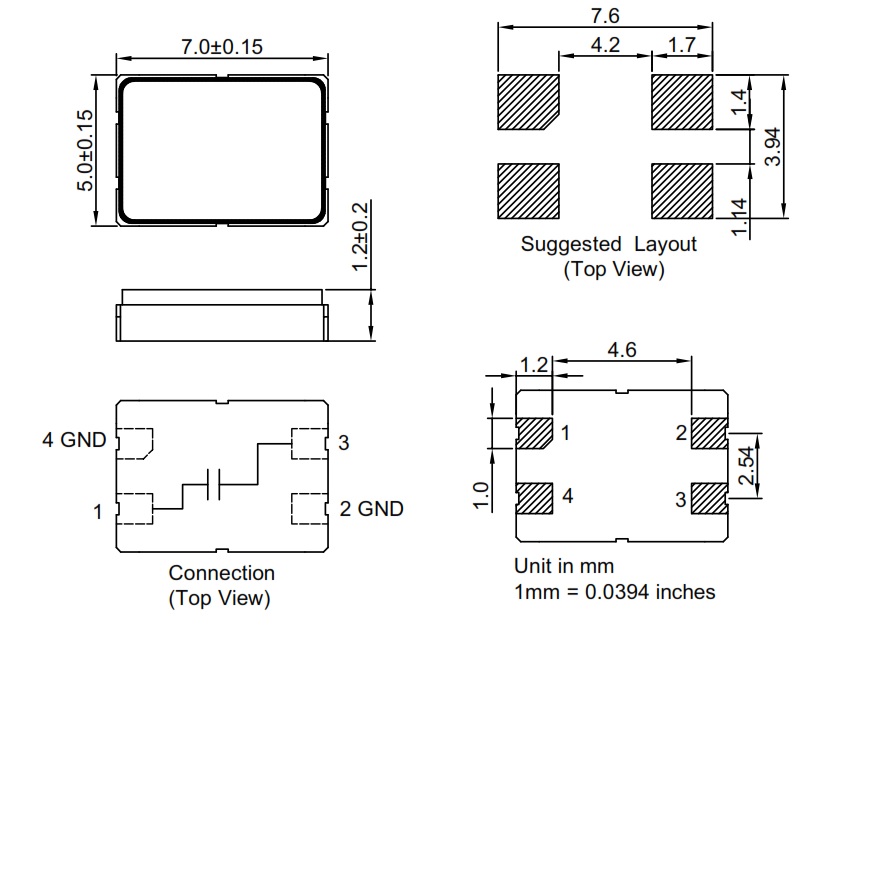

XTAL7500AL-12.8MHz-A 7x5x1.2mm 8pF 12.8MHz 100uW ±10PPM -20°C to +70°C

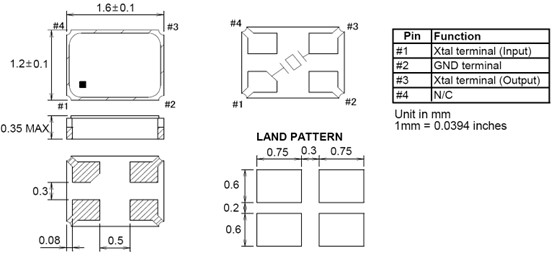

XTAL1612AX 1.6x1.2x0.35mm 6-20pF 24MHz-54MHz 10-100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL2520AX 2.5x2.0x1.0mm 6-20pF 12MHz-60MHz 10-100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL5032AX 5.0x3.2x1.1mm 6-20pF 10MHz-60MHz 10-200uW ±15ppm to ±50ppm -40°C to +85°C
XTAL6032AX 6.0x3.5x1.2mm 6-20pF 8MHz-60MHz 100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL7500AX 7.0x5.0x1.3mm 6-20pF 5.5MHz-60MHz 100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL2016AX 2.05x1.65x0.6mm 6-20pF 16MHz-60MHz 10-100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL3225AX 3.2x2.5x0.8mm 6-20pF 10MHz-60MHz 10-100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL6035AX 6.0x3.5x1.2mm 6-20pF 8MHz-60MHz 100uW ±15ppm to ±50ppm -40°C to +85°C

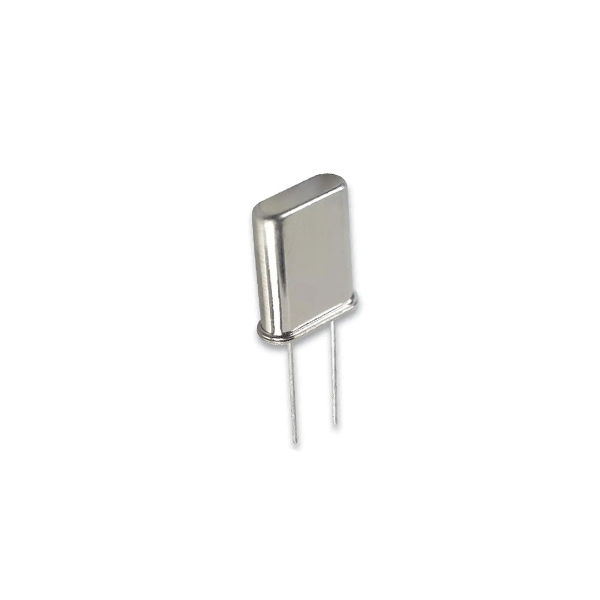

XTALHC49UAX 11.5x5x13.46mm 6-20pF 1.536MHz-60MHz 100uW ±15ppm to ±50ppm -40°C to +85°C
XTAL1612CU-40MHz-A 1.6x1.2x0.35mm 9.0pF 40MHz 100uW ±10ppm -30°C to +85°C
