| 产品型号 | 规格书 | 产品图片 | 供电电压 (V) |
封装尺寸 长 x 宽 x 高 (mm) |
输出功率(dBm) | 最小频率 (MHz) |
最大频率 (MHz) |
设置时间 (ms) |
步进频率 (KHz) |
相位噪声@10KHz (dBc/Hz) |

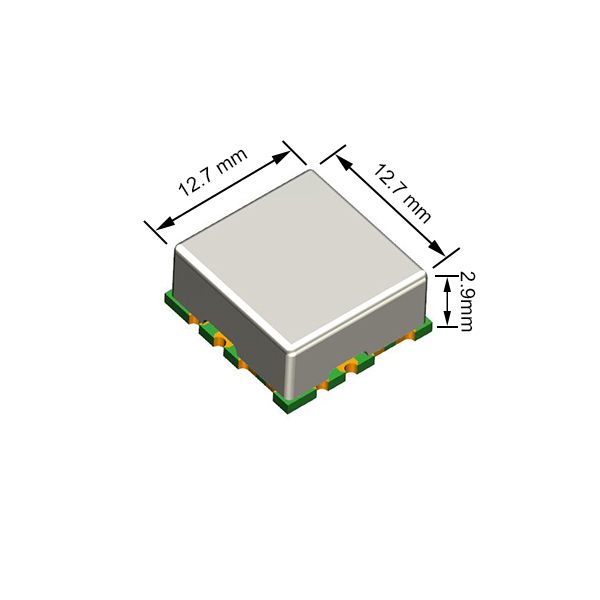

| PLL1212BQ-IT-941.5MHz-961.5MHz-A |
|
|
5 | 12.7x12.7x2.9 | 5 | 941.5 | 961.5 | 30 | 25 | -105 |
| PLL1212BQ-IT-1665MHz-1740MHz-A |
|
|
5 | 12.7x12.7x2.9 | 6 | 1665 | 1740 | 30 | 100 | -99 |
| PLL1212BQ-IT-1810MHz-1830MHz-A |
|
|
5 | 12.7x12.7x2.9 | 9 | 1810 | 1830 | 30 | 50 | -101 |
| PLL1212BQ-IT-1840MHz-1880MHz-A |
|
|
5 | 12.7x12.7x2.9 | 7 | 1840 | 1880 | 30 | 50 | -102 |
| PLL1212BQ-IT-1860MHz-1880MHz-A |
|
|
5 | 12.7x12.7x2.9 | 7 | 1860 | 1880 | 30 | 100 | -102 |
| PLL1212BQ-IT-1935MHz-2050MHz-A |
|
|
5 | 12.7x12.7x2.9 | 6 | 1935 | 2050 | 30 | 100 | -96 |
| PLL1212BQ-IT-2010MHz-2030MHz-A |
|
|
5 | 12.7x12.7x2.9 | 9 | 2010 | 2030 | 30 | 50 | -100 |
| PLL1212BQ-IT-2030MHz-2070MHz-A |
|
|
5 | 12.7x12.7x2.9 | 7 | 2030 | 2070 | 30 | 50 | -99 |
| PLL1212BQ-IT-2050MHz-2070MHz-A |
|
|
5 | 12.7x12.7x2.9 | 7 | 2050 | 2070 | 30 | 100 | -99 |
| PLL1212BQ-IT-2060MHz-2080MHz-A |
|
|
5 | 12.7x12.7x2.9 | 9 | 2060 | 2080 | 30 | 50 | -98 |

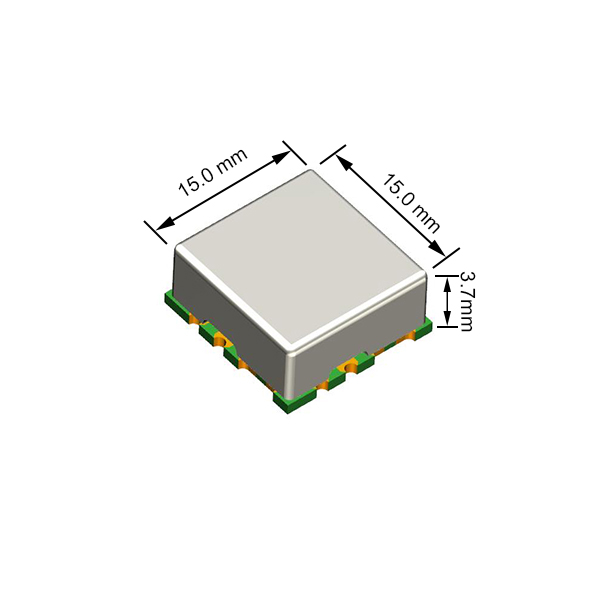

| PLL1515BQ-IT-139MHz-141MHz-A |
|
|
5 | 15x15x3.7 | 5 | 139 | 141 | 10 | 10 | -118 |
| PLL1515BQ-IT-740MHz-800MHz-A |
|
|
5 | 15x15x3.7 | 6 | 740 | 800 | 10 | 50 | -109 |
| PLL1515BQ-IT-825MHz-835MHz-A |
|
|
5 | 15x15x3.7 | 6 | 825 | 835 | 10 | 50 | -109 |
| PLL1515BQ-IT-925MHz-955MHz-A |
|
|
5 | 15x15x3.7 | 6 | 925 | 955 | 10 | 50 | -107 |
| PLL1515BQ-IT-1005MHz-1025MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1005 | 1025 | 10 | 10 | -104 |
| PLL1515BQ-IT-1030MHz-1040MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1030 | 1040 | 10 | 50 | -106 |
| PLL1515BQ-IT-1635.2MHz-1655.2MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1635.2 | 1655.2 | 10 | 10 | -12 |
| PLL1515BQ-IT-1644.2MHz-1664.2MHz-A |
|
|
5 | 15x15x3.7 | 5 | 1644.2 | 1664.2 | 10 | 50 | -102 |
| PLL1515BQ-IT-1685MHz-1705MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1685 | 1705 | 10 | 50 | -103 |
| PLL1515BQ-IT-1747.5MHz-1792.5MHz-A |
|
|
5 | 15x15x3.7 | 11 | 1747.5 | 1792.5 | 10 | 100 | -100 |
| PLL1515BQ-IT-1795MHz-1865MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1795 | 1865 | 10 | 50 | -100 |
| PLL1515BQ-IT-1885MHz-1945MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1885 | 1945 | 10 | 50 | -101 |
| PLL1515BQ-IT-1915MHz-1925MHz-A |
|
|
5 | 15x15x3.7 | 6 | 1915 | 1925 | 10 | 50 | -100 |
| PLL1515BQ-IT-1920MHz-1980MHz-A |
|
|
5 | 15x15x3.7 | 8 | 1920 | 1980 | 10 | 50 | -98 |
| PLL1515BQ-IT-1980MHz-2040MHz-A |
|
|
5 | 15x15x3.7 | 8 | 1980 | 2040 | 10 | 100 | -98 |
| PLL1515BQ-IT-2035MHz-2045MHz-A |
|
|
5 | 15x15x3.7 | 8 | 2035 | 2045 | 10 | 100 | -98 |
| PLL1515BQ-IT-2010MHz-2080MHz-A |
|
|
5 | 15x15x3.7 | 8 | 2010 | 2080 | 10 | 100 | -98 |
| PLL1515BQ-IT-2030MHz-2100MHz-A |
|
|
5 | 15x15x3.7 | 5 | 2030 | 2100 | 10 | 100 | -100 |
| PLL1515BQ-IT-2067.5MHz-2137.5MHz-A |
|
|
5 | 15x15x3.7 | 5 | 2067.5 | 2137.5 | 10 | 100 | -99 |
| PLL1515BQ-IT-2100MHz-2130MHz-A |
|
|
5 | 15x15x3.7 | 6 | 2100 | 2130 | 10 | 50 | -99 |
| PLL1515BQ-IT-2225MHz-2295MHz-A |
|
|
5 | 15x15x3.7 | 6 | 2225 | 2295 | 10 | 50 | -96 |
| PLL1515BQ-IT-2255MHz-2305MHz-A |
|
|
5 | 15x15x3.7 | 5 | 2255 | 2305 | 10 | 100 | -95 |
| PLL1919BQ-IT-1890MHz-1920MHz-A |
|
|
5 | 19x19x5.8 | 3 | 1890 | 1920 | 2.8 | 10 | -102 |
| PLL1919BQ-IT-2045MHz-2105MHz-A |
|
|
5 | 19x19x5.8 | 0 | 2045 | 2105 | 10 | 10 | -101 |
| PLL1919BQ-IT-2160MHz-2220MHz-A |
|
|
5 | 19x19x5.8 | 3 | 2160 | 2220 | 10 | 100 | -96 |
| PLL1919BQ-IT-2300MHz-2400MHz-A |
|
|
5 | 19x19x5.8 | 0 | 2300 | 2400 | 10 | 100 | -99 |
| PLL1919BQ-IT-2811MHz-2975MHz-A |
|
|
5 | 19x19x5.8 | 3 | 2811 | 2975 | 10 | 50 | -90 |
| PLL1919BQ-IT-140MHz-165MHz-A |
|
|
5 | 19x19x5.8 | 10 | 140 | 165 | 10 | 100 | -111 |
| PLL1919BQ-IT-450MHz-470MHz-A |
|
|
5 | 19x19x5.8 | 0 | 450 | 470 | 10 | 10 | -110 |
| PLL1919BQ-IT-799MHz-824MHz-A |
|
|
5 | 19x19x5.8 | 3 | 799 | 824 | 10 | 10 | -110 |
| PLL1919BQ-IT-1565MHz-1640MHz-A |
|
|
5 | 19x19x5.8 | 0 | 1565 | 1640 | 10 | 500 | -102 |
| PLL1919BQ-IT-2000MHz-2060MHz-A |
|
|
5 | 19x19x5.8 | 2 | 2000 | 2060 | 10 | 200 | -99 |
